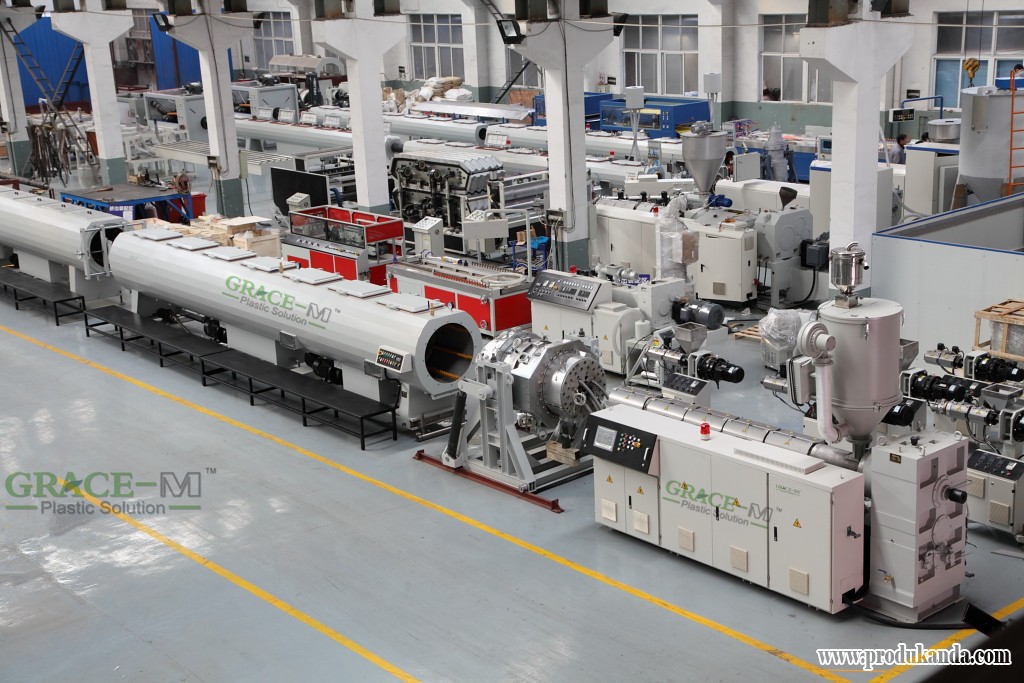

Machine Characteristics
1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters
on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
|
Model |
Pipe ranger (mm) |
Extruder |
Max.output(kg/h) |
Max.hauling speed(m/min.) |
Extruder powder (KW) |
|
GMP-63Ⅰ |
Ф20-63 |
SJ65/33 |
220 |
12 |
55 |
|
GMP-63Ⅱ |
Ф20-63 |
GMD60/38 |
460 |
30 |
110 |
|
GMP-110 |
Ф20-110 |
GMD60/38 |
460 |
30 |
110 |
|
GMP-160Ⅰ |
Ф75-160 |
SJ75/33 |
400 |
5 |
110 |
|
GMP-160Ⅱ |
Ф40-160 |
GMD60/38 |
460 |
12 |
110 |
|
GMP-250Ⅰ |
Ф90-250 |
SJ75/33 |
400 |
4 |
110 |
|
GMP-250Ⅱ |
Ф50-250 |
GMD75/38 |
600 |
8 |
132 |
|
GMP-450 |
Ф90-400 |
GMD90/38 |
1,050 |
5 |
250 |
|
GMP-450 |
Ф160-450 |
SJ90/33 |
500 |
2 |
160 |
|
GMP-630Ⅰ |
Ф315-630 |
SJ120/33 |
850 |
1.6 |
315 |
|
GMP-630Ⅱ |
Ф160-630 |
GMD90/38 |
1,190 |
2 |
280 |
|
GMP-800 |
Ф500-800 |
GMD120/38 |
1,300 |
1.5 |
355 |
|
GMP-1200 |
Ф710-1200 |
GMD75/38 GMD90/38 |
1,650 |
0.8 |
160 250 |
|
GMP-1600 |
Ф1000-1600 |
GMD90/38 GMD90/38 |
2,100 |
0.5 |
280 280 |
